hmtoggle_arrow1Aerospace Toolbar has been Rearranged

The Aerospace toolbar is rearranged into assembly, geometry, panel mesh, beam mesh, loads, composite, connectors, results and certification for ease of grouping of functionality.

aero_14_01


hmtoggle_arrow1Composite Enhancements

The Composite Import dialog has been enhanced to import ply base surfaces in addition to ply contour lines.

Each ply also now contains separate ply orientation system, and base surface.

aero_14_02

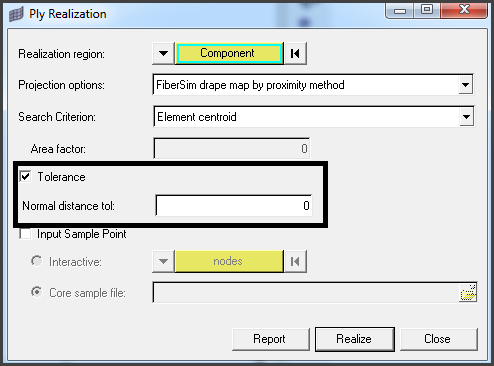

A new ply realization method is added to Fibersim composite models.

aero_14_03

Composite realization for RADIOSS and LS-DYNA is now supported, including draping correction.


hmtoggle_arrow1Field Mapping

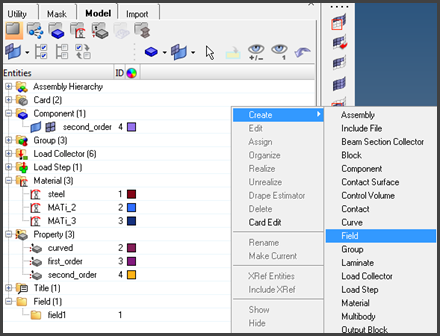

A new database entity called Field has been added. It is supported in the Entity Editor.

This entity helps map pressure, temperature, property (ID, thickness) and material orientation to new sets of elements and models from HyperView results files, CSV files, old solver decks and matrix tables.

aero_14_04
hmtoggle_arrow1New Matrix Browser

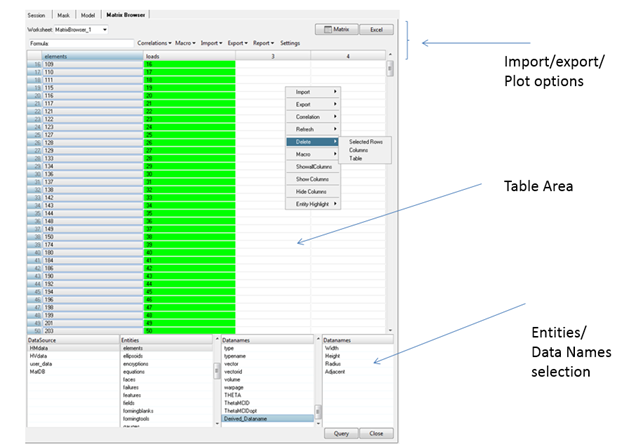

Version 2 of the Matrix Browser improves ease of use. This also supports multiple load case browsing from HyperView.

aero_14_05
hmtoggle_arrow1Aerospace Tools
•Assembly: Organize models from Solver Input.

aero_14_06

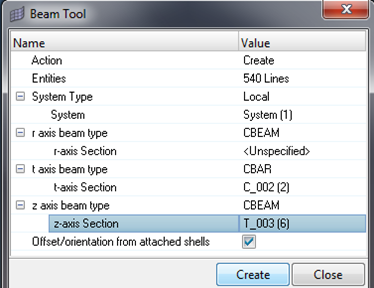

•Beam from lines: 1D element creation, update, orientation, offset and property calculation is enhanced for Aerospace users.

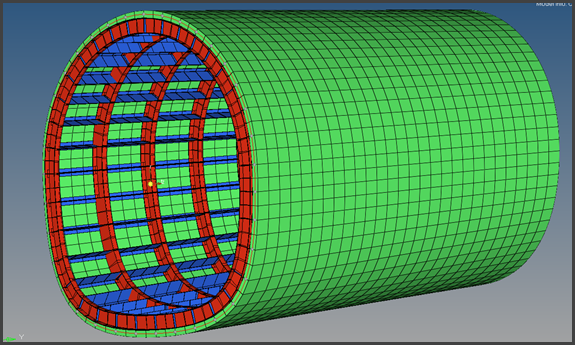

aero_14_07

aero_14_08

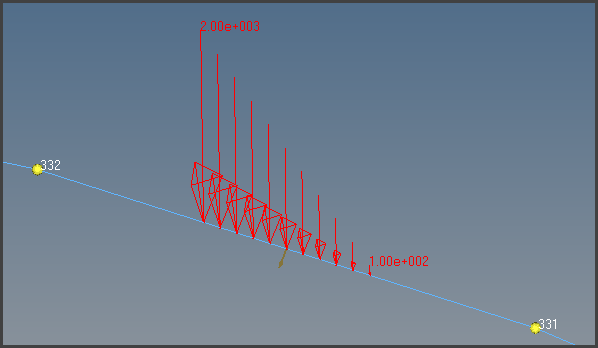

•Loads: New PLOAD1 creation/review, RSPLINE creation, review tools are added.

aero_14_09

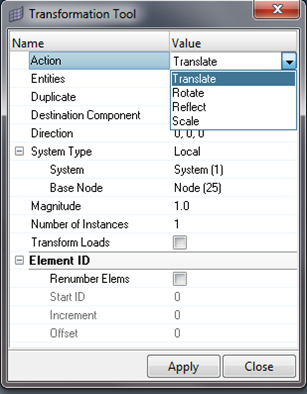

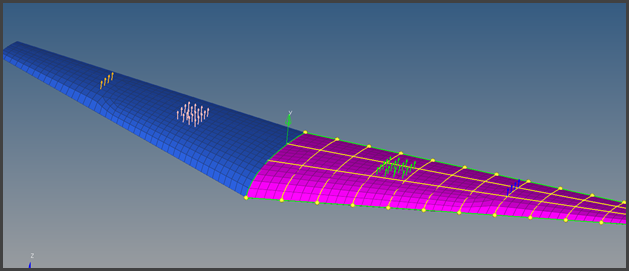

•New Load transform tool: Translate, rotate, and reflect models with copying loads and multiple instancing is enhanced.

aero_14_10

aero_14_11

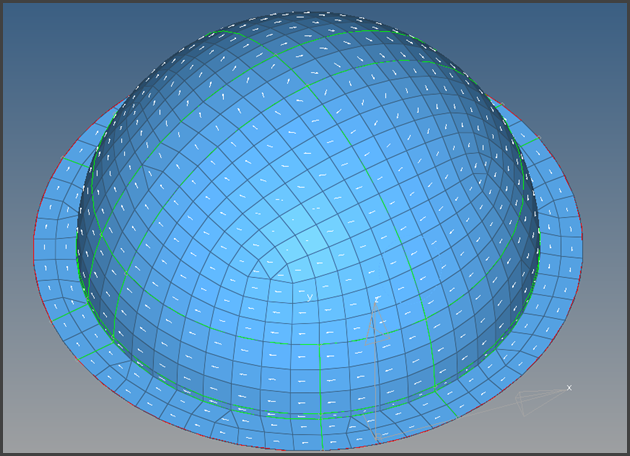

•Composite: New material orientation creation from curves has been added.

aero_14_12

•Results: Min/Max, Envelop, ranking, bar end loads, and shear plots from HyperView results in HyperMesh has been added
•Certification: ESACOMP based composite certification added. This is a link to ESACOMP- APA product.


hmtoggle_arrow1Mesh Refinement

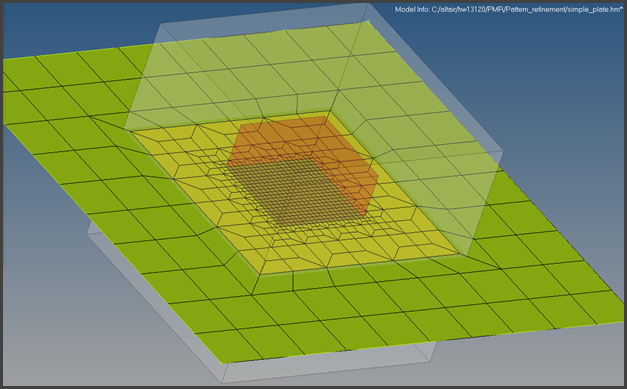

New element refinement tool based on quad mesh pattern is added.

aero_14_13
hmtoggle_arrow1HyperView Enhancements
•1D element corner bound forces results are supported.
•1D element forces are supported for nonlinear SOL 106 and 400 Nastran.
•2D element forces based CROWS plots are supported.
•Free body diagram support in HyperView.
•New Aerospace profile is added to HyperView.


hmtoggle_arrow1Midsurface Mesh Imprint

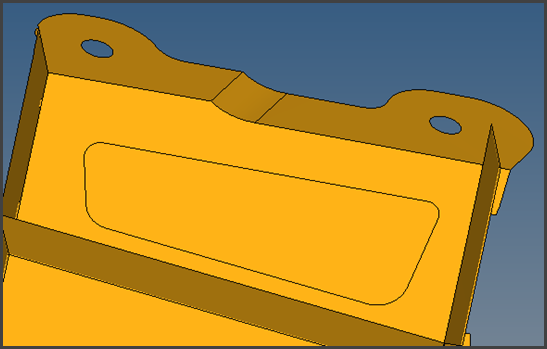

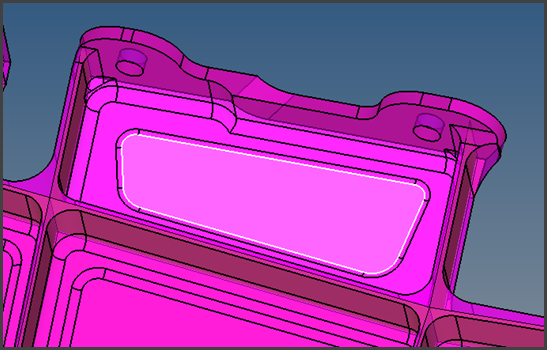

Ability to imprint pockets from solids to midsurface models are added.

aero_14_14

aero_14_15
