Highlights

In this release, the Matrix tool has been further enhanced to support following customer requested functions.

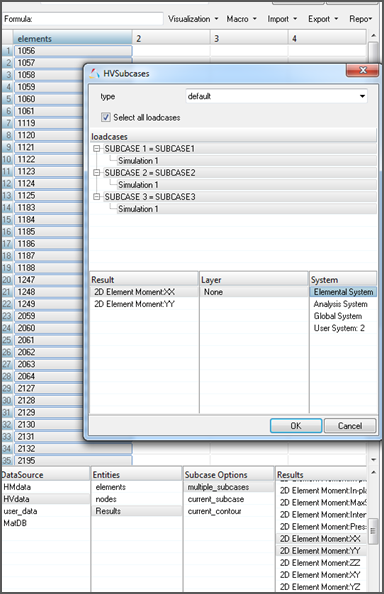

hmtoggle_arrow1Enhance Load Case Selection Options

Users are now provided with a possibility to select:

•Current subcase active in an HyperView session
•Multiple subcase results available in a solver results file regardless of what is selected in HyperView session
•To query from the active contour results displayed in the HyperView graphics window.

aero_14_110_01

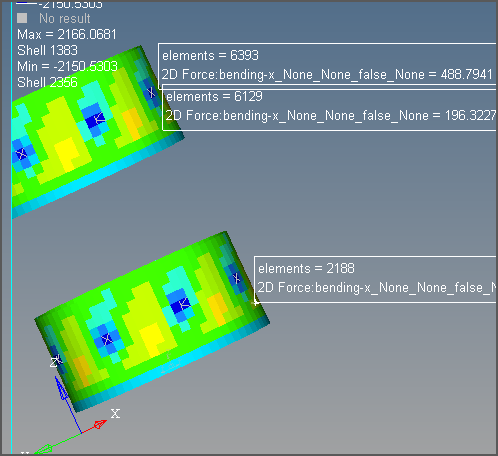

hmtoggle_arrow1Component/ Set / Material /Property Based Results Query

Unlike the previous version, now users can query max/min results for component/sets/material /property entities. The software will search the max/min values for the elements in that component and provide single value and the element ID / load case ID where that value occurred.

aero_14_110_02

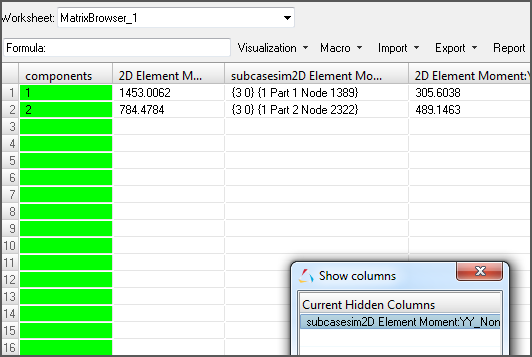

hmtoggle_arrow1Creating Notes in HyperView

The Matrix tool provides the ability to create Annotation (HV- notes) for selected column results. From the right click menu, users can create or delete notes.

aero_14_110_03

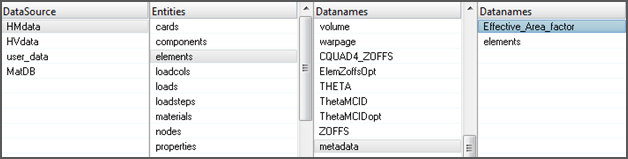

hmtoggle_arrow1Creating/Retrieving Metadata in HyperMesh for Entities

It is very useful to add and store additional data for HyperMesh entities, such as nodes/elements/components which cannot be added using the standard HyperMesh GUI.

This data is permanently stored in the HyperMesh database.

aero_14_110_04
