Highlights
Highlights of this release include an option to display mid-side node results, new Parts View to display CAE part structure/hierarchy information available in the model file, and some general enhancements and bug fixes. Please read below for more details.

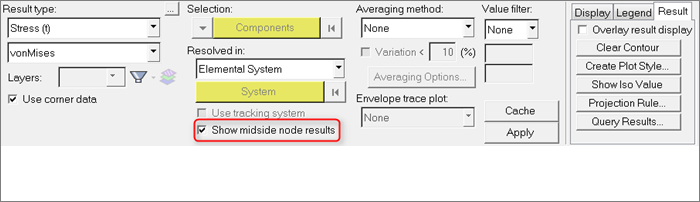

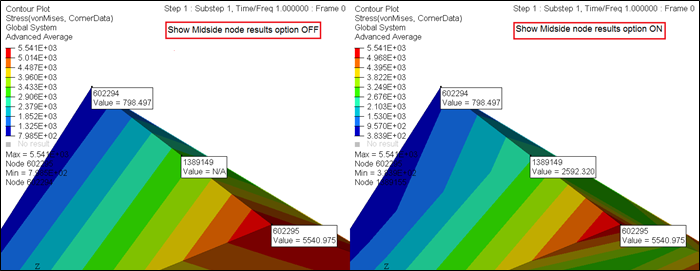

A new option to show results on mid-side nodes on 2nd order elements is introduced. This option, in the form of a checkbox in the Contour, Iso and Tensor panels, controls what HyperView will do in case of mid-side nodes. For example, if the result file has 2nd order elements without results on the mid-side nodes, turning this checkbox ON and contouring will result in HyperView calculating results on the mid-side nodes and displaying it. If the checkbox is OFF, HyperView will not show any results on mid-side nodes. Please note that this option is available even when the result file contains mid-side node results. Refer to user’s guide for more details.
|

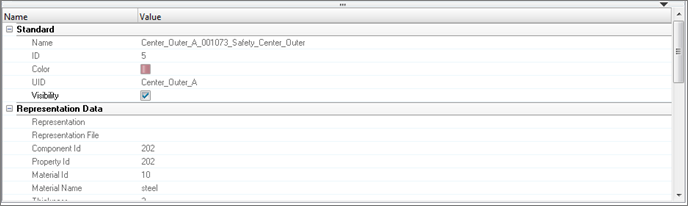

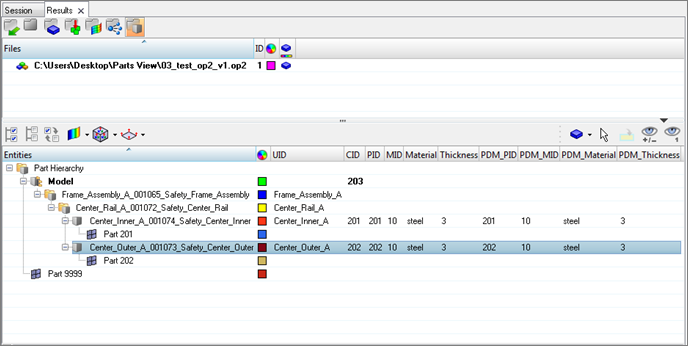

A new Parts view in the Results browser is introduced. This view displays the CAE part structure/hierarchy information that is typically present in the model file as metadata. The top half of the view displays the model hierarchy and some part attributes and the bottom half of the view displays the selected entity attributes. Selection by part or component and show/hide/isolate is available. Color by part option is also available.
|
| • | New failure theories - Yamada-Sun, Hashin and Puck - have been added to the result-math composite library. |
| • | Option to make a note border circular or elliptical, in addition to the default rectangular, is provided. |
| • | Query functionality is enhanced to allow querying of results on nodal level when elemental corner data results are contoured. |
| • | Create curves option in Measure panel enhanced to allow plotting of corner data values. |
| • | A new page display and page navigation is introduced in HyperWorks Desktop. This is located at the top right corner of the session below the menu bar. |
| • | Up and down arrows are provided in the vector and tensor panels to quickly scale the size of the arrows. |
|
| • | Graphics issue when a model with eroded elements is loaded again in a second window. |
| • | Graphics issue when switching between animation modes on a model with adaptivity. |
| • | Contour value not shown when displaying a node path measure on a layer based contour. |
| • | Incorrect display and problems with masking and highlighting of Abaqus BAR3 elements due to an issue reading nodal connectivity. |
| • | Application hang when switching subcases quickly on very large models. |
| • | New results not shown when re-loading an updated result file. |
| • | Unexpected change of file path in the load model panel when loading a model of unrecognized file type. |
| • | Issue with color interpolation when changing levels on a signed VonMises legend. |
| • | Animation mode was not set properly when opening an h3d in HyperView Player. |
| • | FBD browser tab was not retained when switching to a different window and returning. |
| • | Model information fails to restore when an h3d with derived loadcase is imported. |
|
