Highlights
New contact browser support with Auto contact creation with improved performance and auto contact detecting capabilities. Solver conversion from Abaqus to OptiStruct enhanced to support nonlinear analysis cards. Nonlinear analysis cards support.

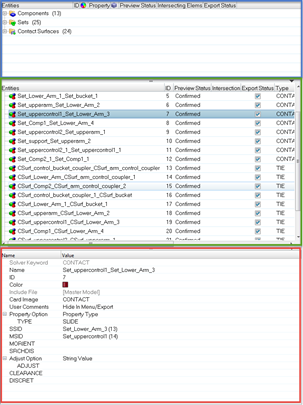

The Contact browser consists of three panes; the first pane displays the component, contact surface, property and set and the second pane displays the contacts content and the third pane displays the Entity Editor. For more information, please refer to the Contact browser online documentation.

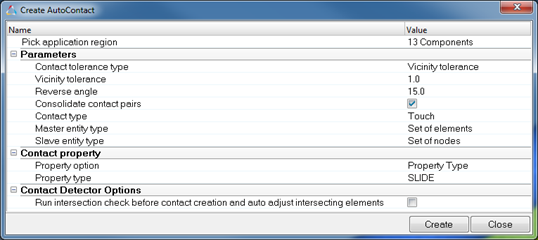

Generating contacts automatically through Auto Contact:
|
| • | Contact browser with new Auto contact detection capabilities |
| • | Gasket elements support CGASK12 and CGASK16 |
| • | Follower load bulk card, subcase entry and param support |
| • | FORCE1 and MOMENT1 card support with visualization |
| • | Contact stabilization CNTSTB support |
| • | Bore deformation support |
| • | TRACK option is added for DISCRETE - N2S in Contact card |
| • | Continuous sliding contact CONSLI option added to track field in Contact card |
| • | MODAL option supported in STRAIN output request |
| • | Nonlinear transient subcase definition |
| • | DT and TTERM support in NLPARM cards |
| • | FSI bulk card and subcase entry support for coupling with Acusolve |
| • | Added missing options in STRESS IO card |
| • | MGASK material enhanced with temperature dependent fields |
|
| • | Missing fields added to EN and SN continuation lines in MATFAT card |
|
| • | Reliability based design optimization support |
| • | Fail safe topology support |
| • | Bore deformation BOREDST as a RTYPE in optimization response |
| • | PBUSH card B and GE lines support in size optimization |
|
Abaqus > OptiStruct
| • | *FREQUENCY converted to ANALYSIS type MODES |
| • | *CLEARANCE is converted to clearance field in PCONT card |
| • | Conversion in batch mode |
| • | Pyramid element support in conversion |
| • | Default contact type (Finite sliding) mapping during conversion |
| • | Element wise convection defined through *SFILM converted to CHBDYE,CONV, PCONV and SPC with ambient temperature |
|
| • | DT and TTERM fields in NLPARM card |
| • | FAIL continuation line in DTPL card |
|
| • | Nonlinear transient subcase definition |
| • | Free format export solver option in Export browser |
| • | Removed unsupported threshold options |
| • | Added .outsidecv to file types in file browser during import |
|
| • | Segmentation error while reading CHBDYE with 0 face ID |
| • | Error when importing fem file with SOLVTYP specified as global case control |
| • | STACK to be selected as TYPE for DTPG in topography optimization in OptiStruct |
| • | Import issue with MFLUID card |
| • | OP2 option was missing in format field for CONTF card |
| • | Issue with MID field in EE on PCONV card |
| • | NA field is missing for OGDEN model in MATHE material |
| • | Application error occurs upon deleting new load |
|
