HyperCrash 2017 Release Notes

 Previous topic Next topic JavaScript is required for expanding text JavaScript is required for the print function

Highlights



hmtoggle_arrow1General Enhancements

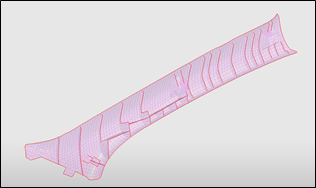

•Graphics: Visualization of mesh free edges – new dedicated icon in the menu toolbar and dedicated graphical display of free edges:

hc_2017_01

hc_2017_02

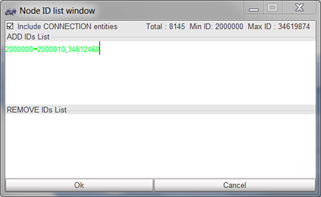

•User Interface - set of nodes/set of parts: New option to manually create/edit node IDs list or part IDs list. A color (green/red) indicates if given IDs are present in the model or not.

hc_2017_03

hc_2017_04

•New advanced accelerometer creation process
•Cross sections
-Enhancements to create circular and parallelogram cross sections by importing file
-Add option to export cross sections to file


hmtoggle_arrow1Safety Tools

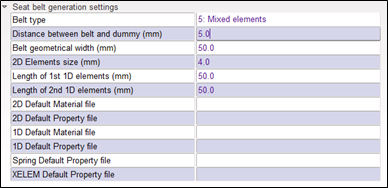

•New seat belt preference settings: In the Preferences settings, all seat-belt options can be specified and thus automatically set-up for seat-belt creation.

hc_2017_05


hmtoggle_arrow1Connections
•Add linear interpolation of attributes defined in MCO file


hmtoggle_arrow1Solver Conversion
•LS-Dyna to RADIOSS:
-Improvements in conversion of *MAT_121
-Improvements in conversion of *MAT_119
-Improvements in conversion of *MAT_100
-Improvements in conversion of *CONTACT_AIRBAG_SINGLE_SURFACE
-Improvements in conversion of *AIRBAG_REFERENCE_GEOMETRY with option BIRTH
-Conversion on *MAT_MUSCLE



•OptiStruct to RADIOSS:
-Conversion of PBUSH to /PROP/TYPE13





RADIOSS User Profile

hmtoggle_arrow1General Enhancements
•TYPE11 Contact creation: New capability to automatically create contact TYPE11 using /LINE/EDGE group type. The choice between creation of /LINE/SURF or /LINE/EDGE is driven by a flag in the Preferences settings.


hmtoggle_arrow1RADIOSS 14.0 Keyword Support
•New Starter Keywords
-/DFS/DETOINT/NODE
-/DFS/DETPLAN/NODE
-/DFS/DETLINE/NODE



•Keyword Updates
-New parameter “IBFRAC” in /MAT/LAW5
-/MONVOL/PRES


hmtoggle_arrow1New RADIOSS 2017 User Profile

The following keywords are implemented in this user profile:

•New Starter keywords
-/MAT/LAW92
-New parameter value “Ivisc=1” in INTER/TYPE20
-New parameter “AREAscale” in /FAIL/CONNECT and /FAIL/SNCONNECT
-New parameters “SKEW1” and “SKEW2” in /PROP/KJOINT2
-New parameter “Trelax” in /MONVOL/GAS


hmtoggle_arrow1Safety Tools
•Dummy Pre-Simulation
-Import h3d is now available from dummy context menu
-Creation of /DAMP card added into the pre-simulation options


hmtoggle_arrow1Model Checker
•Several enhancements and new checks added





LS-DYNA User Profile

hmtoggle_arrow1Connections
•Improvements in absorption method for more than 2T connections.


hmtoggle_arrow1Mass Details
•New option to control mass transfer to master part: A new option is available to activate/deactivate the transfer of mass from the slave part to the master part in case *CONSTRAINED_RIGID_BODIES or *CONSTRAINED_EXTRA_NODES are involved.

hc_2017_06


hmtoggle_arrow1Keyword Support
•Updated cards
-*SECTION_SOLID
-*MAT_183
-*CONTROL_RIGID
