Highlights

In this new release, many improvements have been done in regards to RADIOSS keywords support for RADIOSS versions V14.0 and V14.0.220.

The cylindrical and spherical boxes are now supported as new types in the BOX entity with dedicated graphics and creation process.



hmtoggle_arrow1New RADIOSS 14.0 Keywords

New RADIOSS 14.0 Starter Keywords

•/BOX/CYLIN
•/BOX/SPHER
•/MAT/LAW71
•/PROP/TYPE51
•/TH/SPH_FLOW
•/FAIL/EMC



New RADIOSS 14.0 Engine Keywords

•/ANIM/SHELL/DAMA (added in RADIOSS V13 also)
•/ANIM/SHELL/TDEL
•/DT/GLOB
•/IMPL/QSTAT/MRIGM
•/STATE/NO_DEL
•/STATE/SHELL/FAIL


hmtoggle_arrow1Updated RADIOSS 14.0 Keywords

Contact Interface Cards Parameters Updates

•/INTER/TYPE2 – Area, Ithe and Kthe
•/INTER/TYPE6 – Visc, fct_dv, fct_df and Fscalev
•/INTER/TYPE5 – Inacti option 0,3,4
•/INTER/TYPE7 – fct_IDF and Ascale_F
•/INTER/TYPE11 – Parameter Multimp removed and heat transfer parameters added
•/INTER/TYPE18 – Parameter Multimp removed
•/INTER/TYPE19 – Parameter Multimp removed
•/INTER/TYPE21 – Fct_IDF, Ascale_F and Fheat
•/INTER/TYPE23 – Fpenmax



Failure Cards Updates

•/FAIL/JOHNSON – Dadv
•/FAIL/TAB1 – Dadv, table2_ID, Xscale3, Xscale4, Instability_start, Fading_exponent
•/FAIL/TBUTCH – Dadv



Material Card Updates

•/MAT/LAW0 – Nu
•/MAT/LAW2 – Iflag, SIGMAY, UTS and EUTS
•/MAT/LAW25 – Iflawp removed from Crasurv formulation
•/MAT/LAW38 – KR=2
•/MAT/LAW42 – Iform
•/MAT/LAW51 – IBFRAC for Iform 11
•/MAT/LAW58 – Gsh
•/MAT/LAW59 – Imass, Icomp, Ecomp
•/MAT/LAW60 – Eps_f, Fct_IDE, Einf and CE
•/MAT/LAW77 – Iclose=2



Property Card Updates

•/PROP/TYPE17 – Ipos and Z0
•/PROP/TYPE19 –Npt_ply and alpha_i
•/PROP/SPH – Xi_Stab



SPH Card Updates

•/SPH/INOUT –Node_ID1, Node_ID2, Node_ID3 and Fcut



Time History Card Updates

•/TH/SHEL – Skew_ID
•/TH/SH3N – Skew_ID



Other Updates

•/ANIM/SHELL/SIGEQ – new parameter
•/ANIM/BRICK/FILL – new parameter
•/ANIM/BRICK/SIGEQ – new parameter
•/ANIM/BRICK/TDEL – new card
•/ANIM/BRICK/VDAM – new card
•/MONVOL/AIRBAG1 – updates for Ittf and Iform
•/MONVOL/COMMU1 – updates for Iform
•/MONVOL/FVMBAG1 – updates for Iform and porosity definition parameters
•/MONVOL/PRES – new parameter Itypfun


hmtoggle_arrow1New Support of /BOX/CYLIN and /BOX/SPHER

Those two types of boxes are now supported in the BOX entity with a dedicated entity editor and specific graphical display:

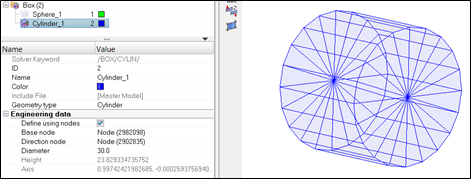

/BOX/CYLIN:

Rad_interface_14_130_01

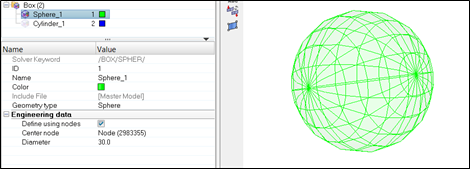

/BOX/SPHER:

Rad_interface_14_130_02


hmtoggle_arrow1Resolved Issues
•Updates in /IMPVEL and /IMPDISP: skew or frame can be defined but not both at the same time.
•Fixed import issue for /PART card defined without material. The component was automatically imported as a spring-rivet type and HM prevented the assignment of a material to it.
•/GRNOD/PART is no longer imported as formula set if all part IDs it refers are positive.
•Refresh issue fixed in Entity Editor after /FUNCT card was created.
•Duplicate names found for similar entities in import are now restored in export.
