This release introduces new component test rigs, analyses, and reports for the AutoSpring, AutoAirSpring, AutoDamper, AutoBumpStop, and AutoReboundStop. Using the component test rigs allows you to easily examine the force vs displacement and force vs. velocity behavior of these auto entities. To use the component test rigs, you build a test rig model with the assembly wizard for the auto entity type you want to test, select the appropriate property file for the entity, add a component analysis using the task wizard, set the appropriate displacement and/or velocity input, run the analysis, and then view the report.

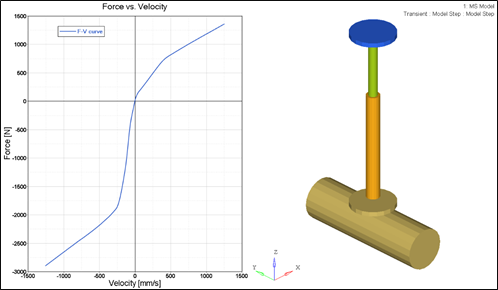

Component Test-Rig: AutoDamper Report
